Operable Partition Walls
& Movable Glass Walls
Top-hung, acoustically rated wall systems engineered to order — manufactured in Guangzhou, China, and exported to the USA and worldwide since 2009.
Our Products
What We Offer
Professional acoustic solutions for modern spaces.
Operable Partitions
Single panel, folding and motorized systems with manual or automatic retractable seals.
Operable Glass Walls
Slim-frame double-glazed tempered glass partitions that stack away without a floor track.
Hot Products
Hot Products — Operable & Movable Partition Solutions
Six core product lines covering solid operable walls and movable glass partitions — from single-panel offices to 59 ft (18 000 mm) super-high openings and fully motorized glass systems.

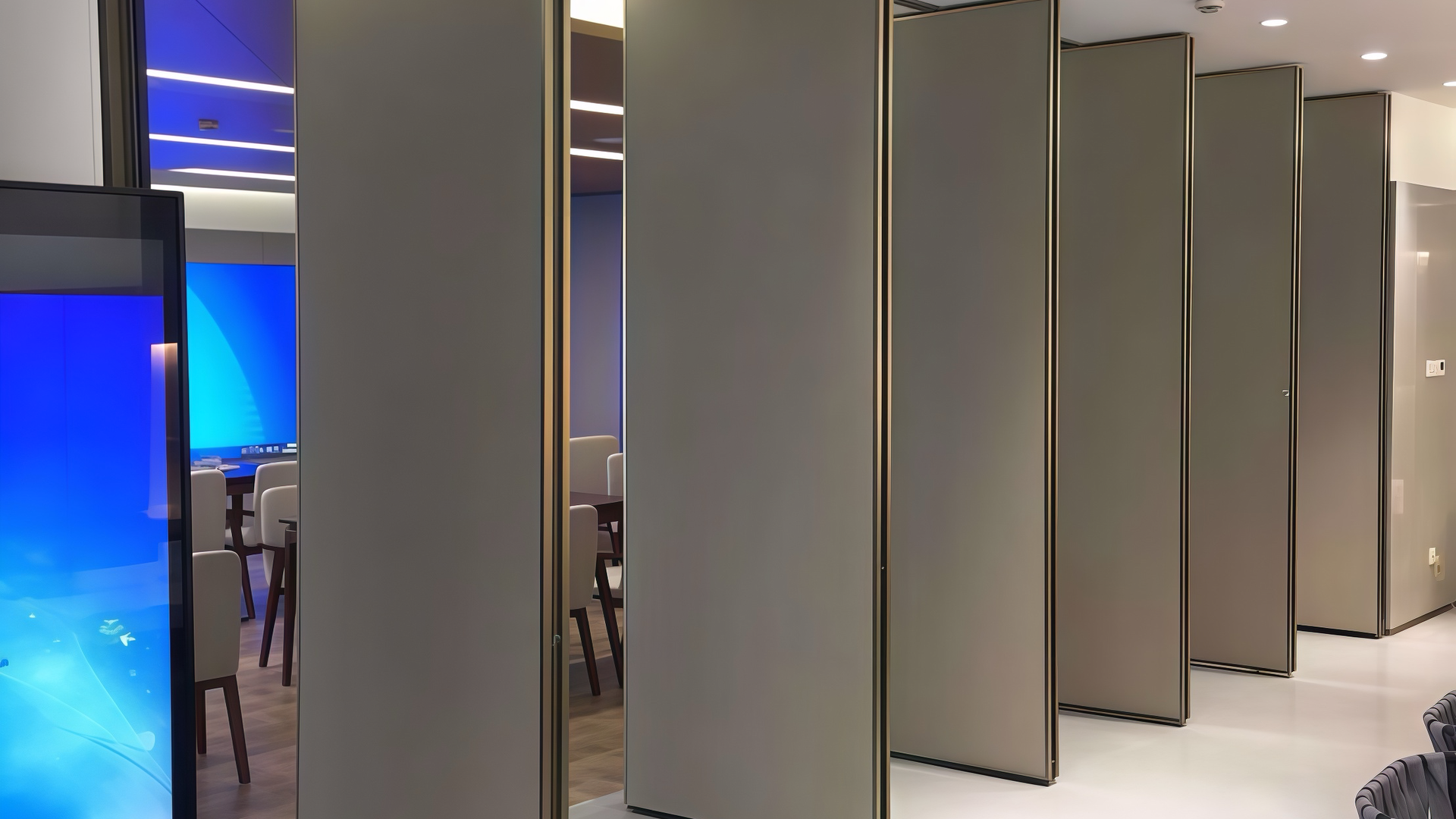

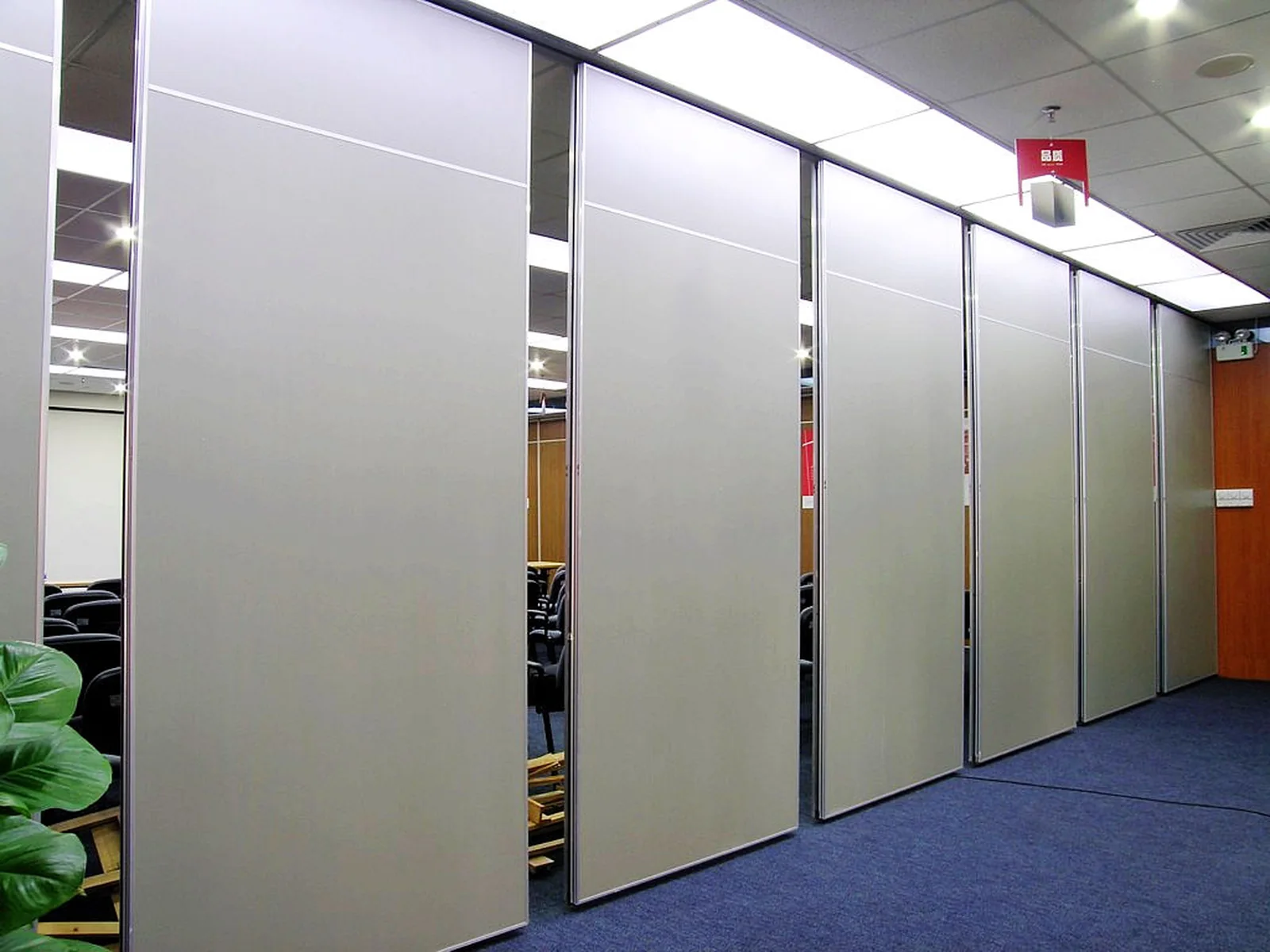

SolidSingle Panel Operable Partitions
Top-hung single-panel system, no floor track. 80 mm aluminum-framed panels for fast office reconfiguration.

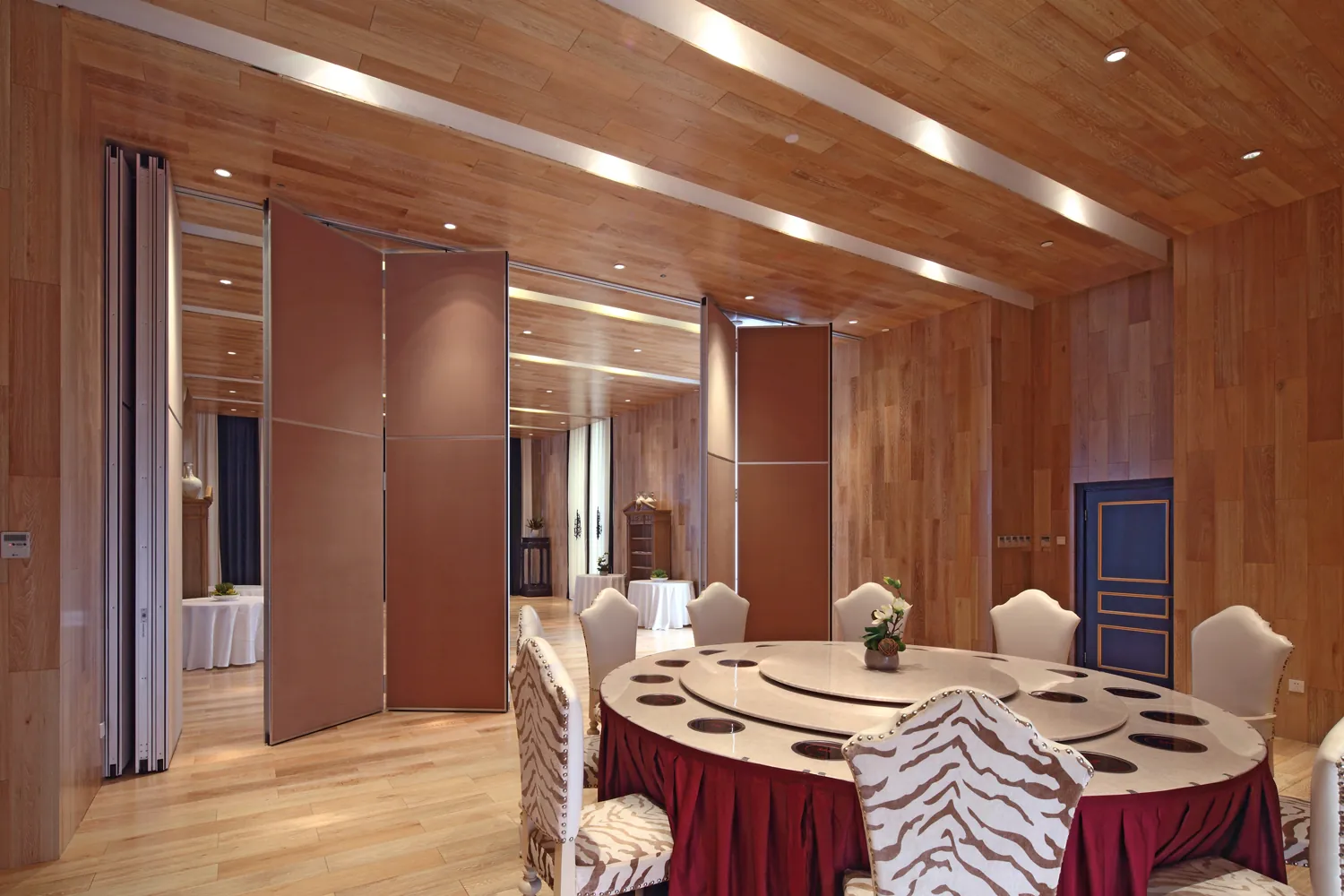

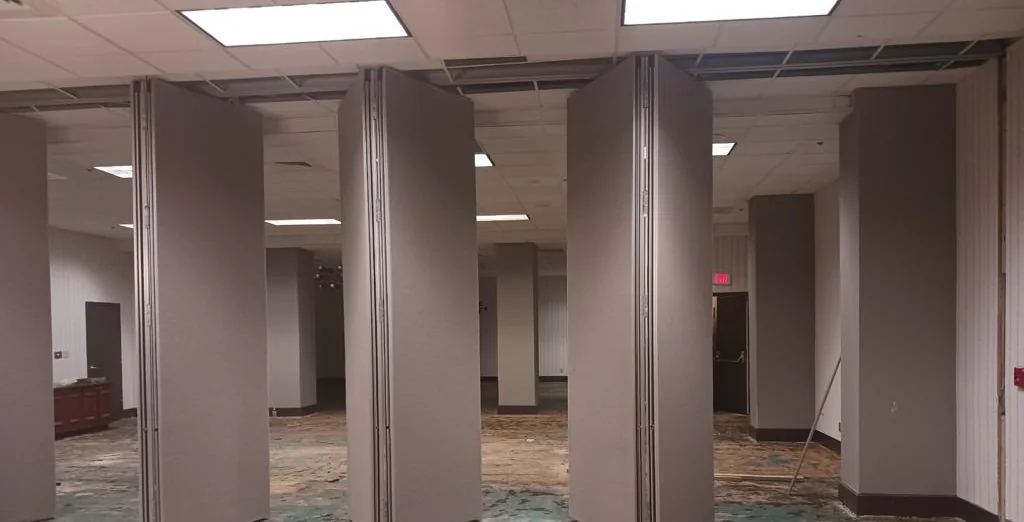

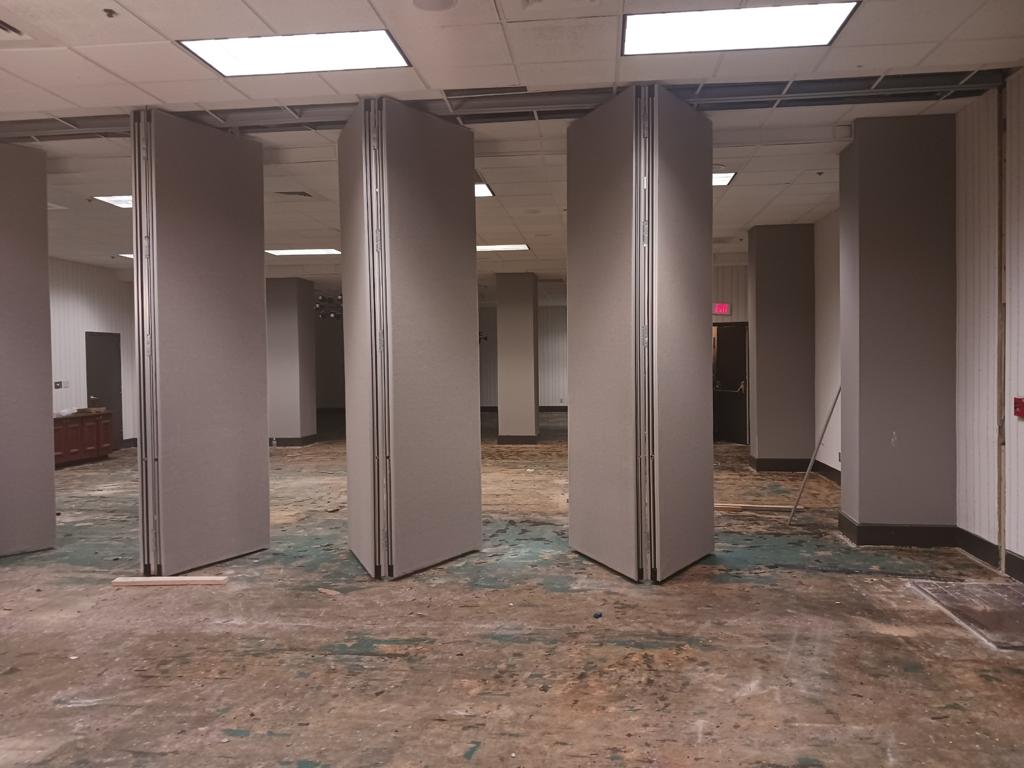

SolidPaired Hinged & Folding Operable Partitions
Paired-hinged folding panels that stack neatly to one side. 100 mm thick — for ballrooms and conference centers.

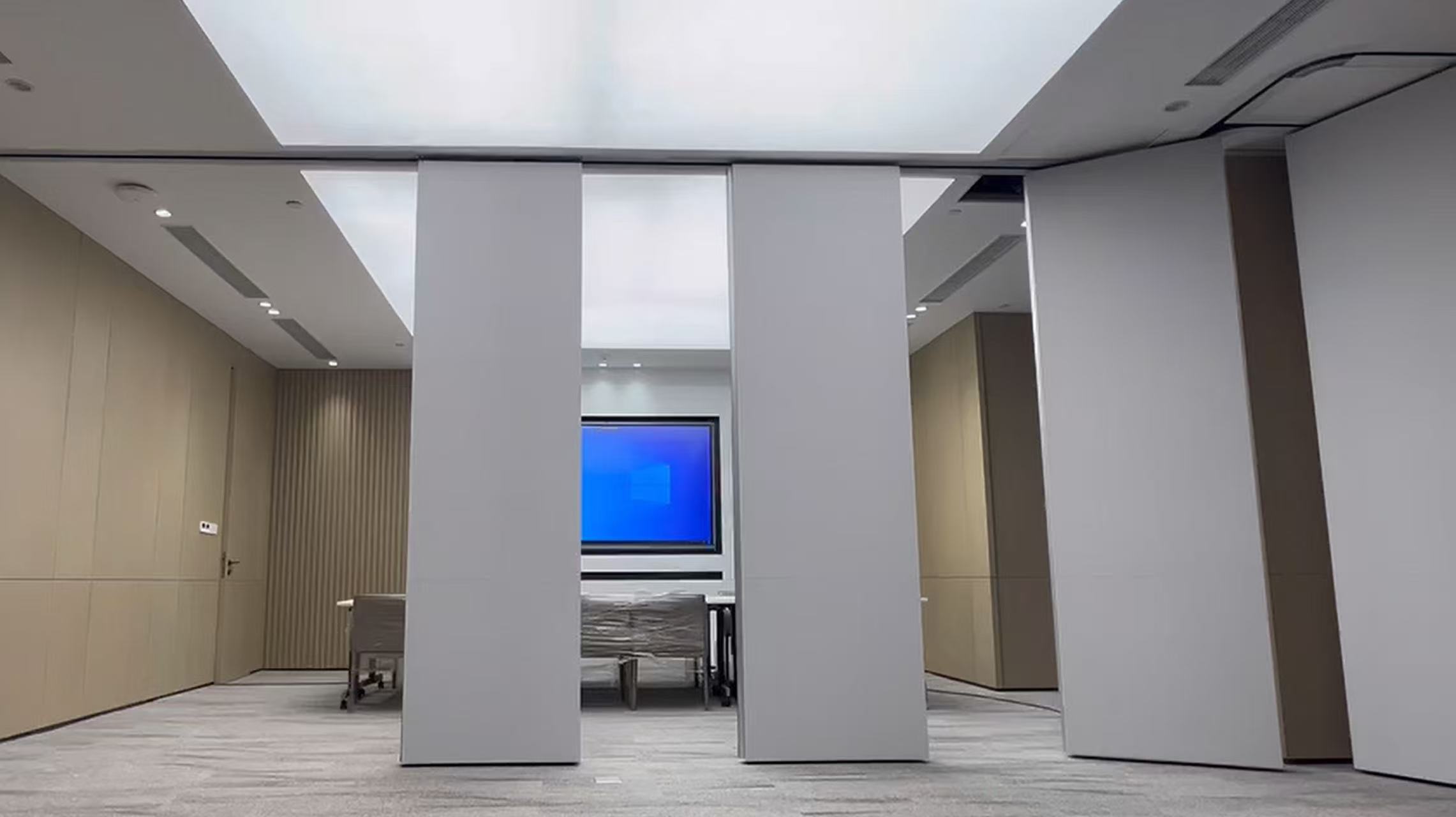

MotorizedMotorized Operable Walls
Automated panel travel with retracting seals — one-touch division for premium venues and flexible spaces.

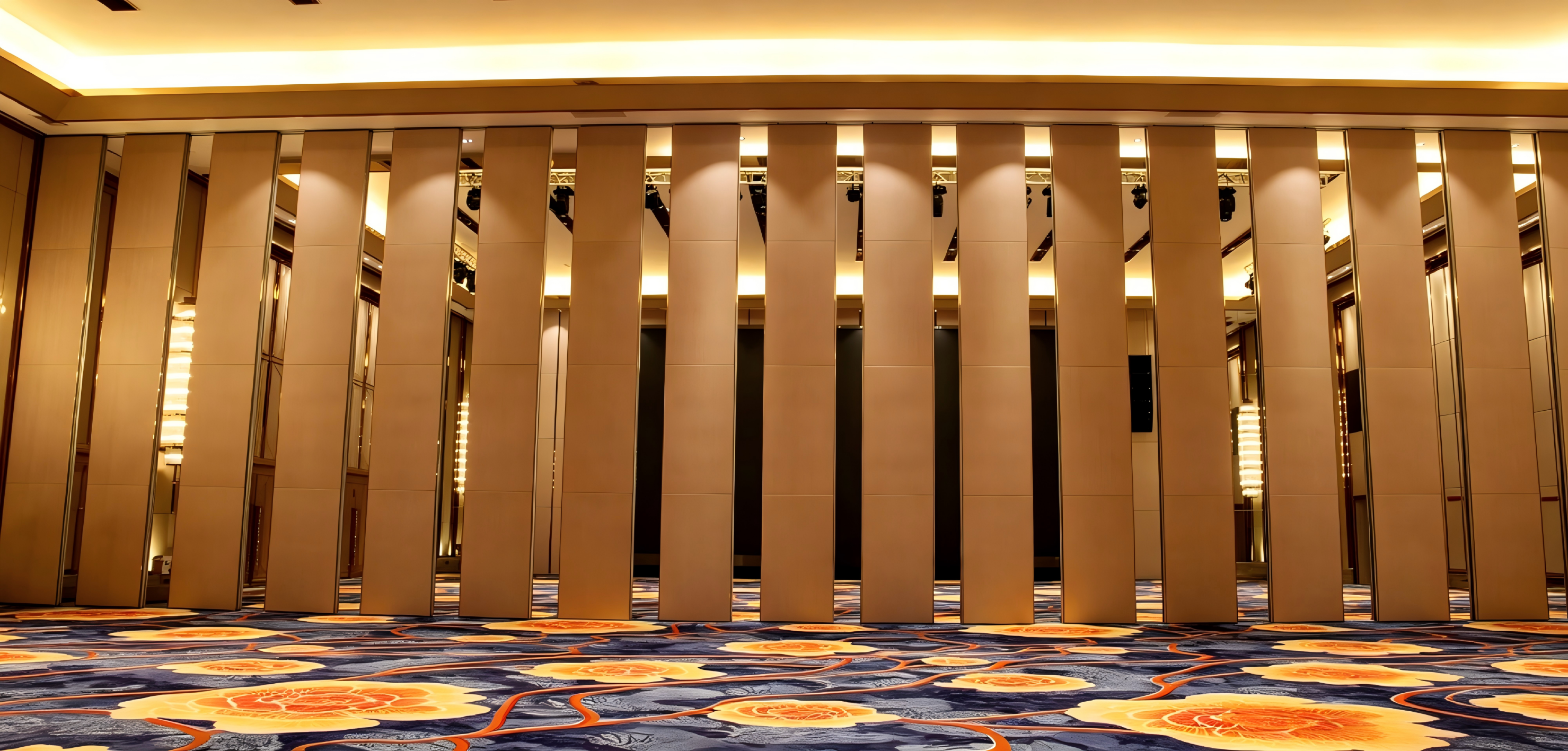

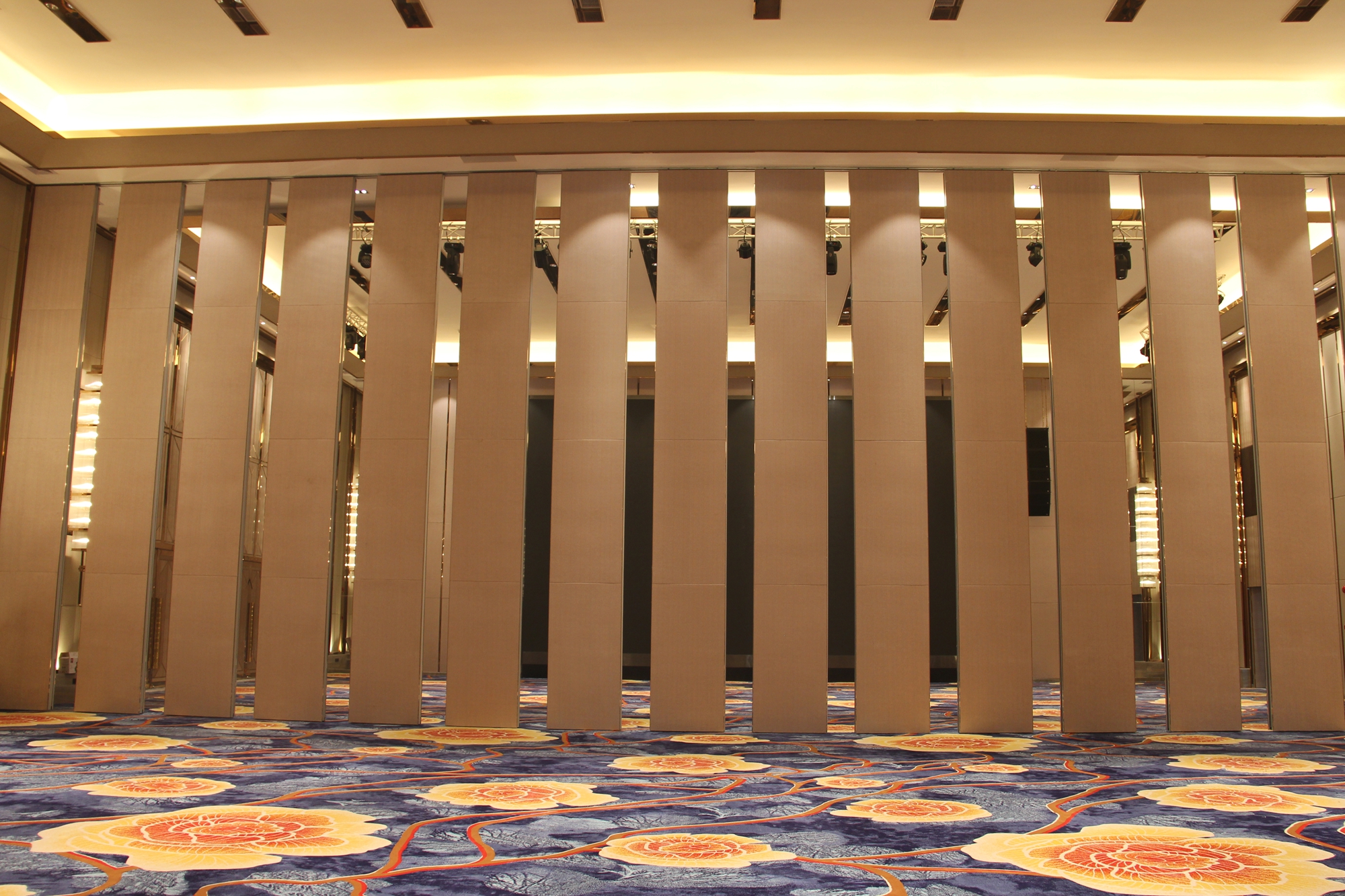

Super-HighOperable Partitions For Tall Openings
Welded steel frame on roller-suspended track — engineered for atriums and full-height voids.

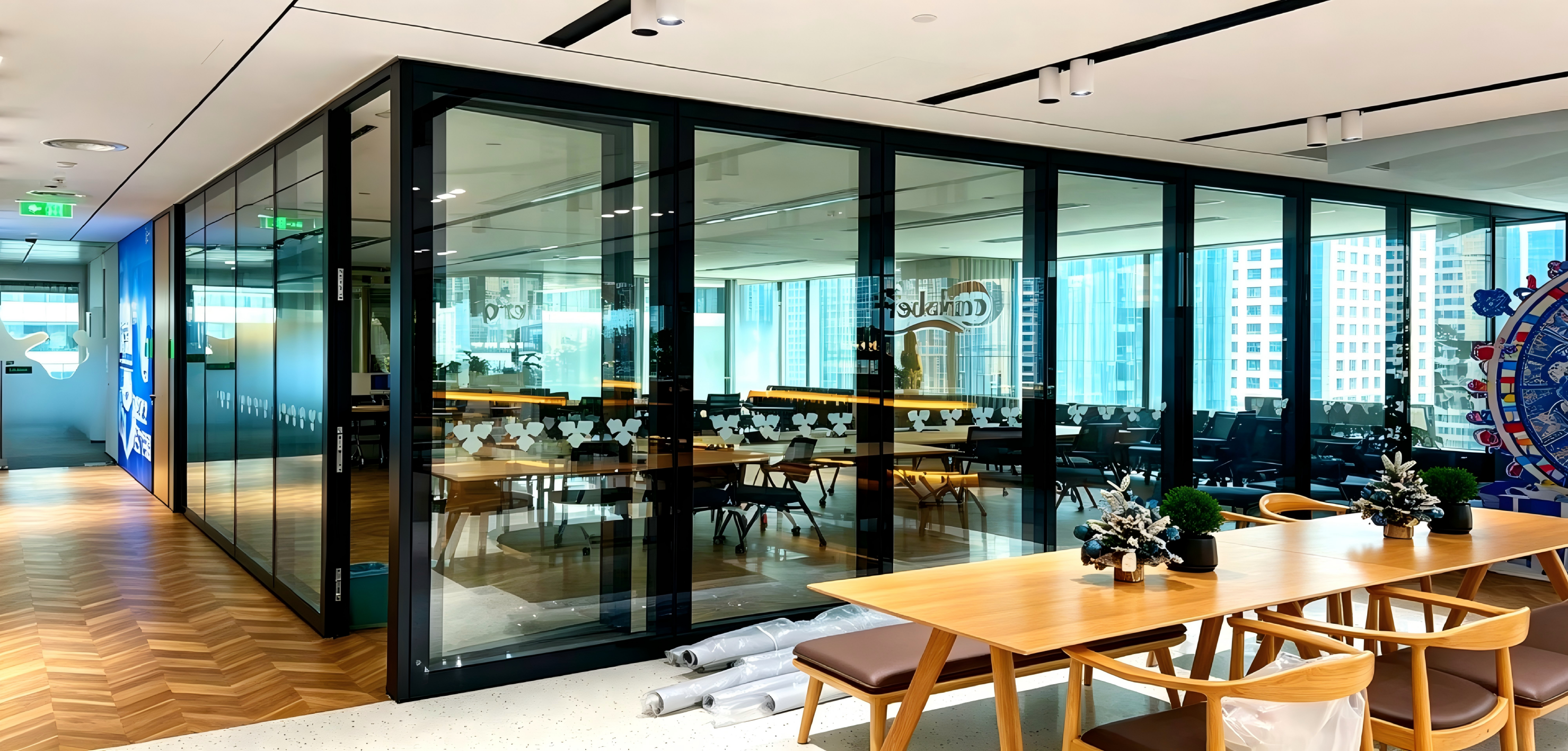

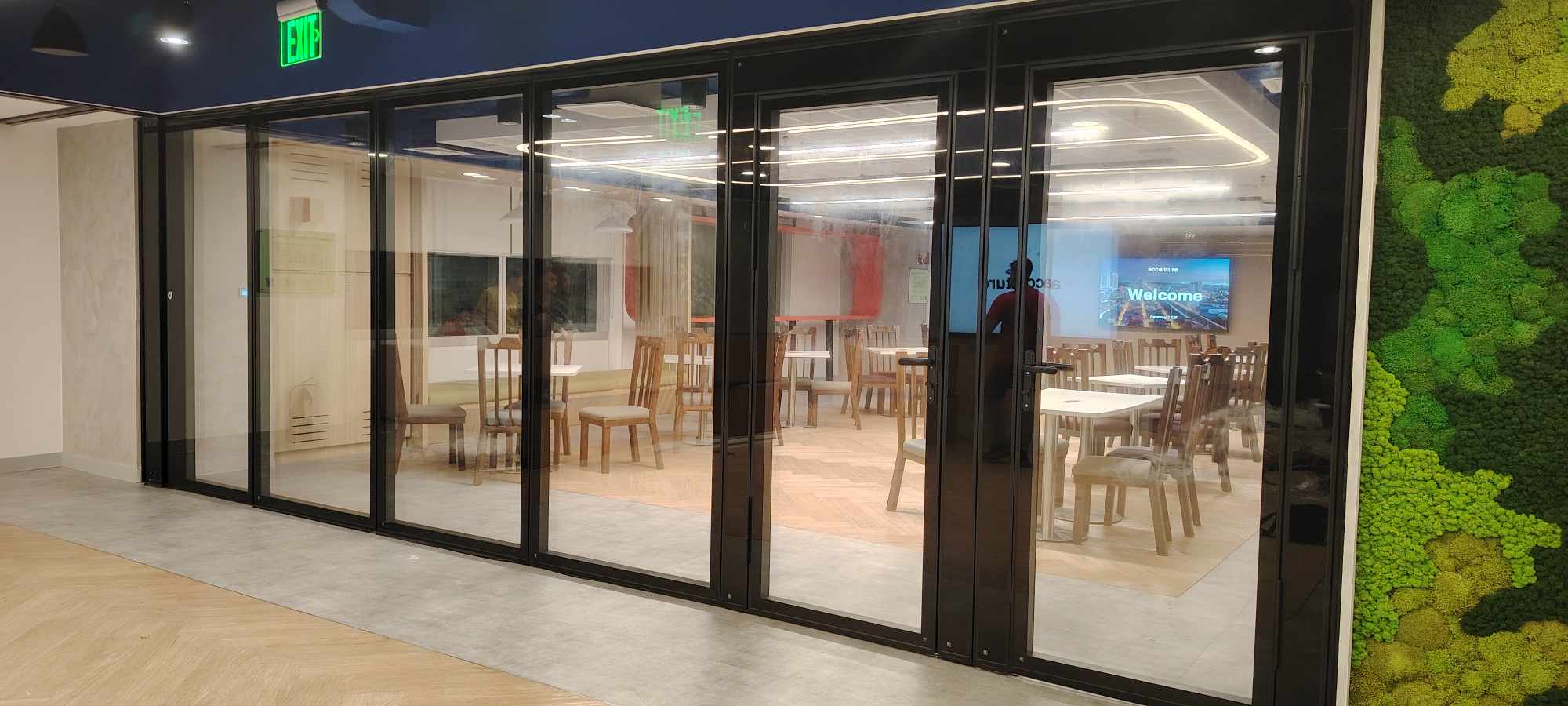

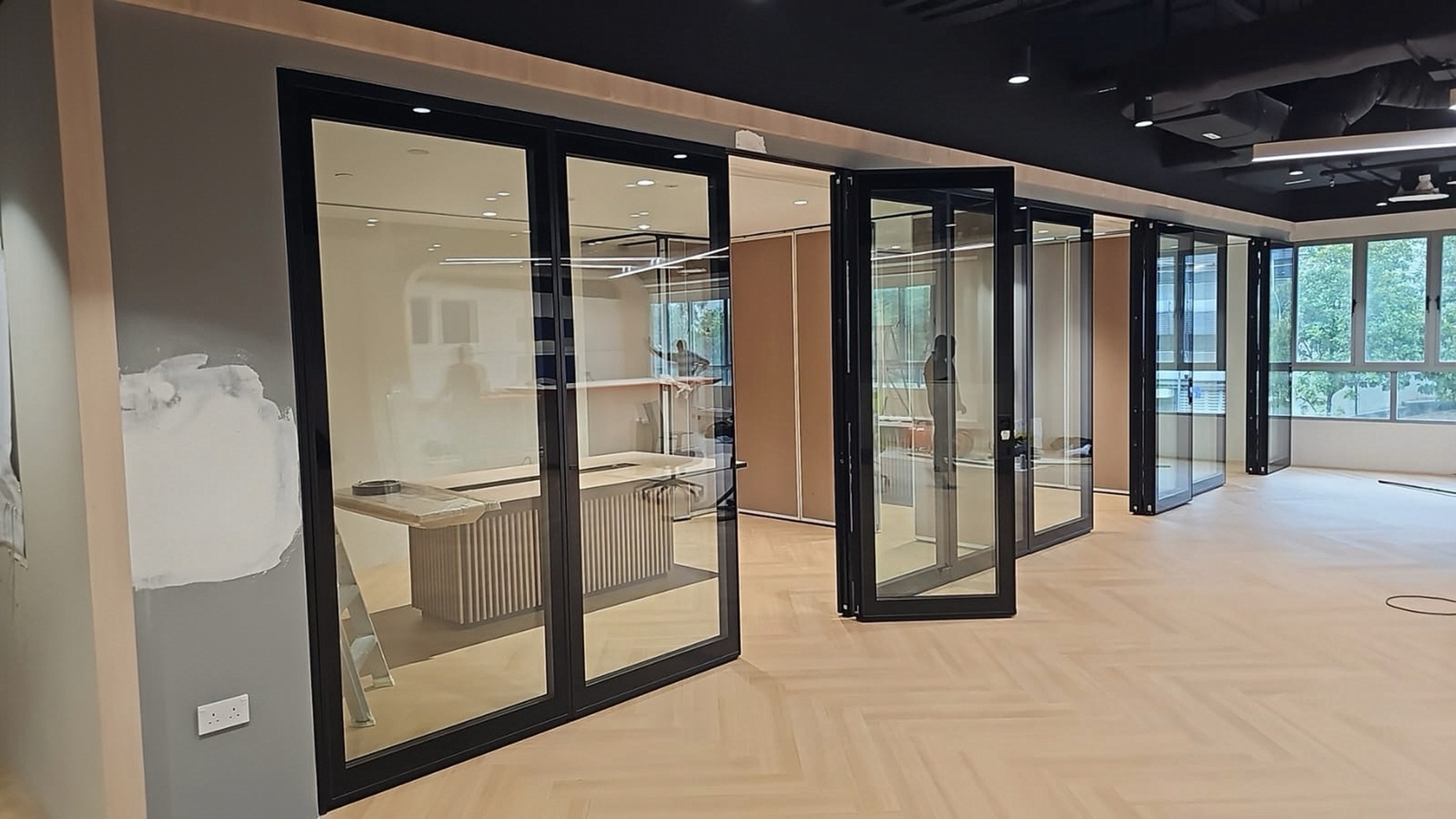

GlassManual Operable Glass Partitions
Framed movable glass wall, 8 mm tempered. Top-hung, no floor track, manually operated.

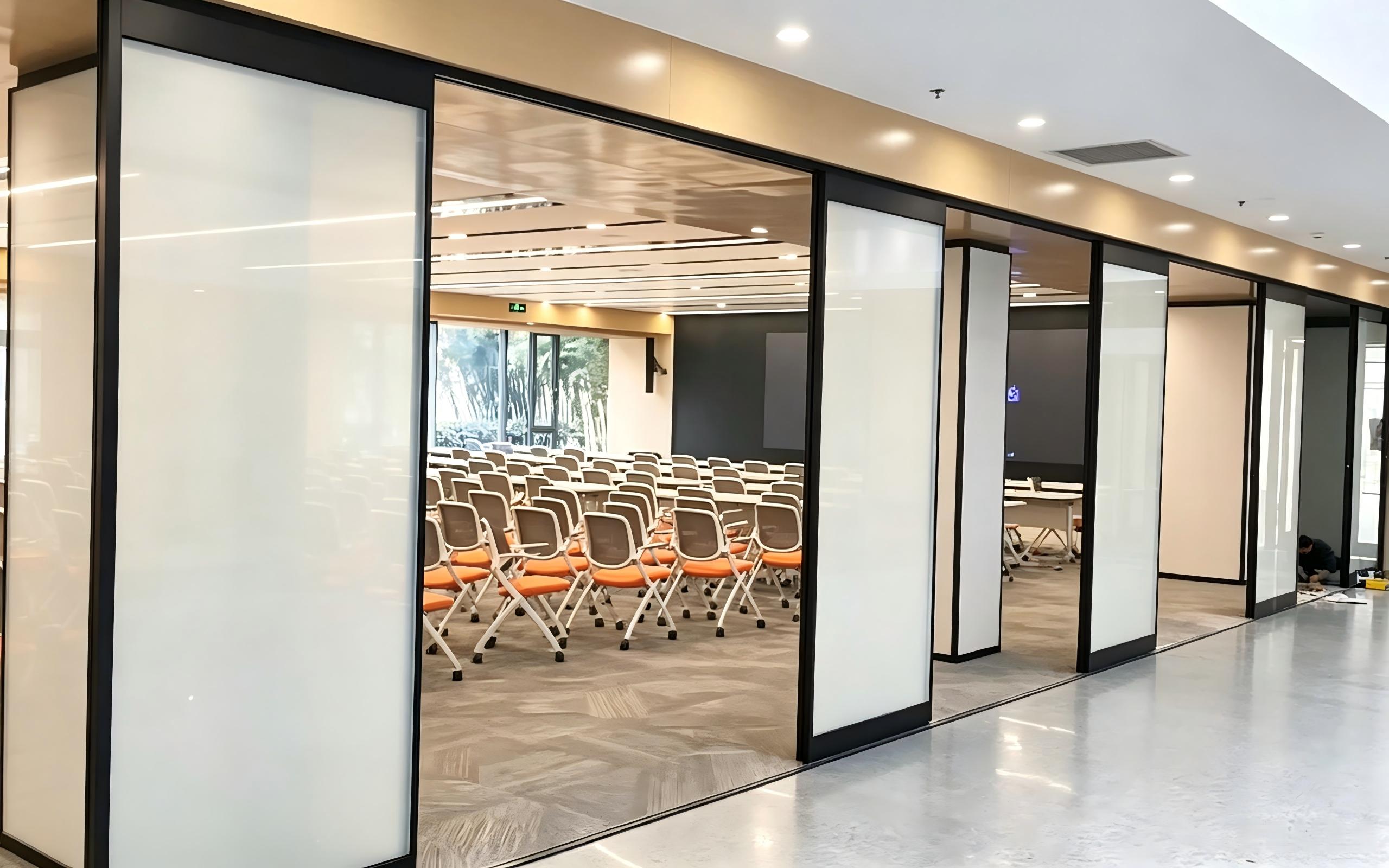

Glass · MotorizedFully Motorized Glass Operable Partition
Auto-walking glass panels with retracting top and bottom seals — silent, effortless division.

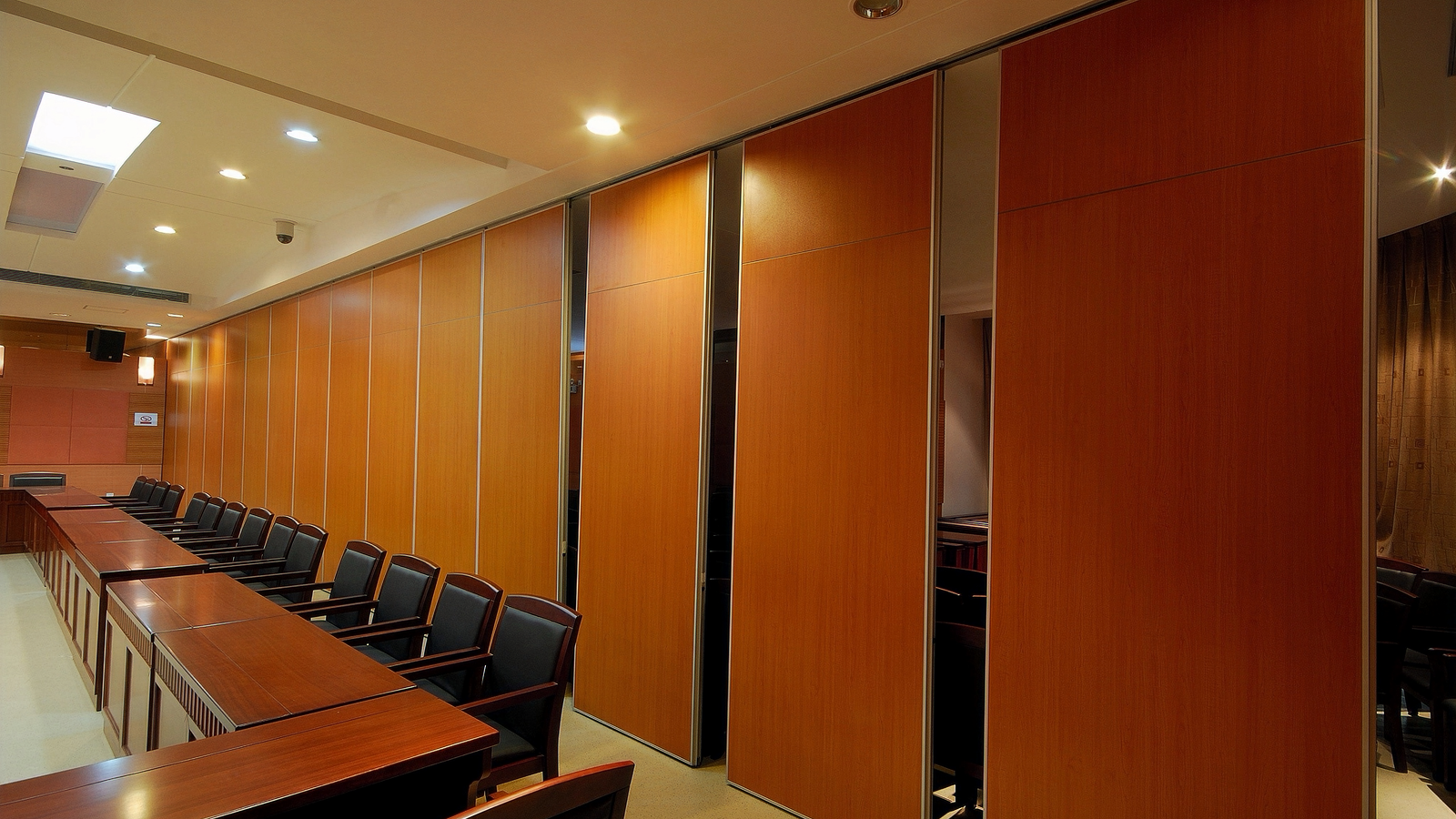

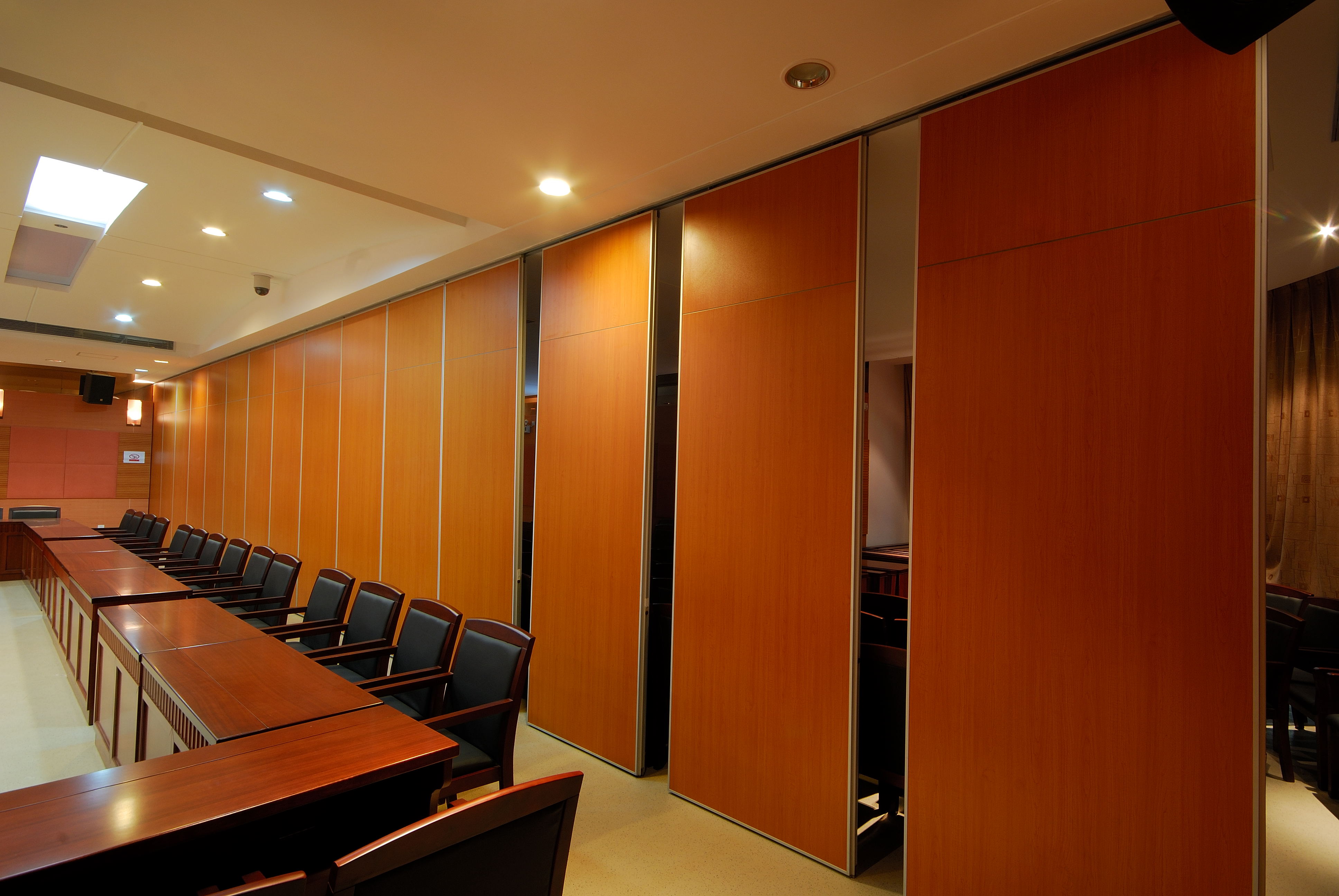

InstallationConference Room Installation
NEUWALL operable partitions installed in a conference room, providing flexible acoustic separation.

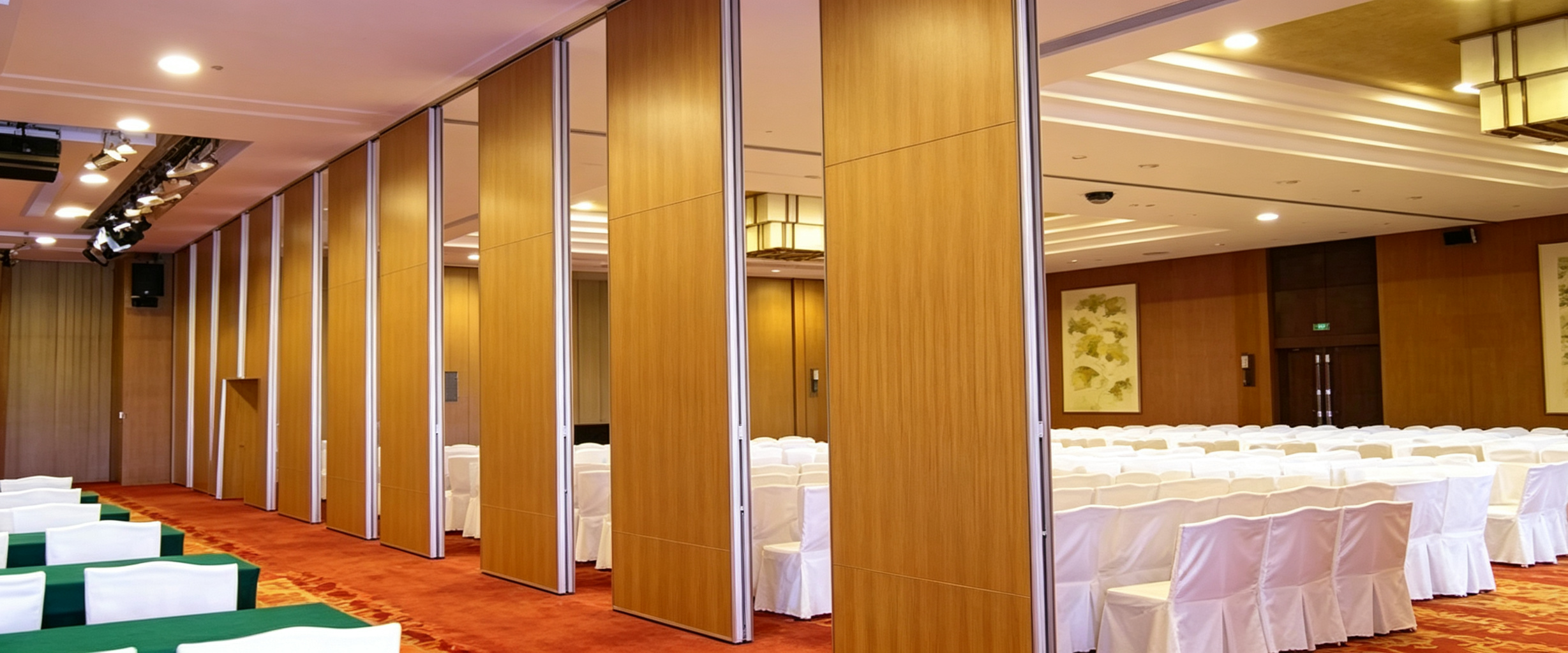

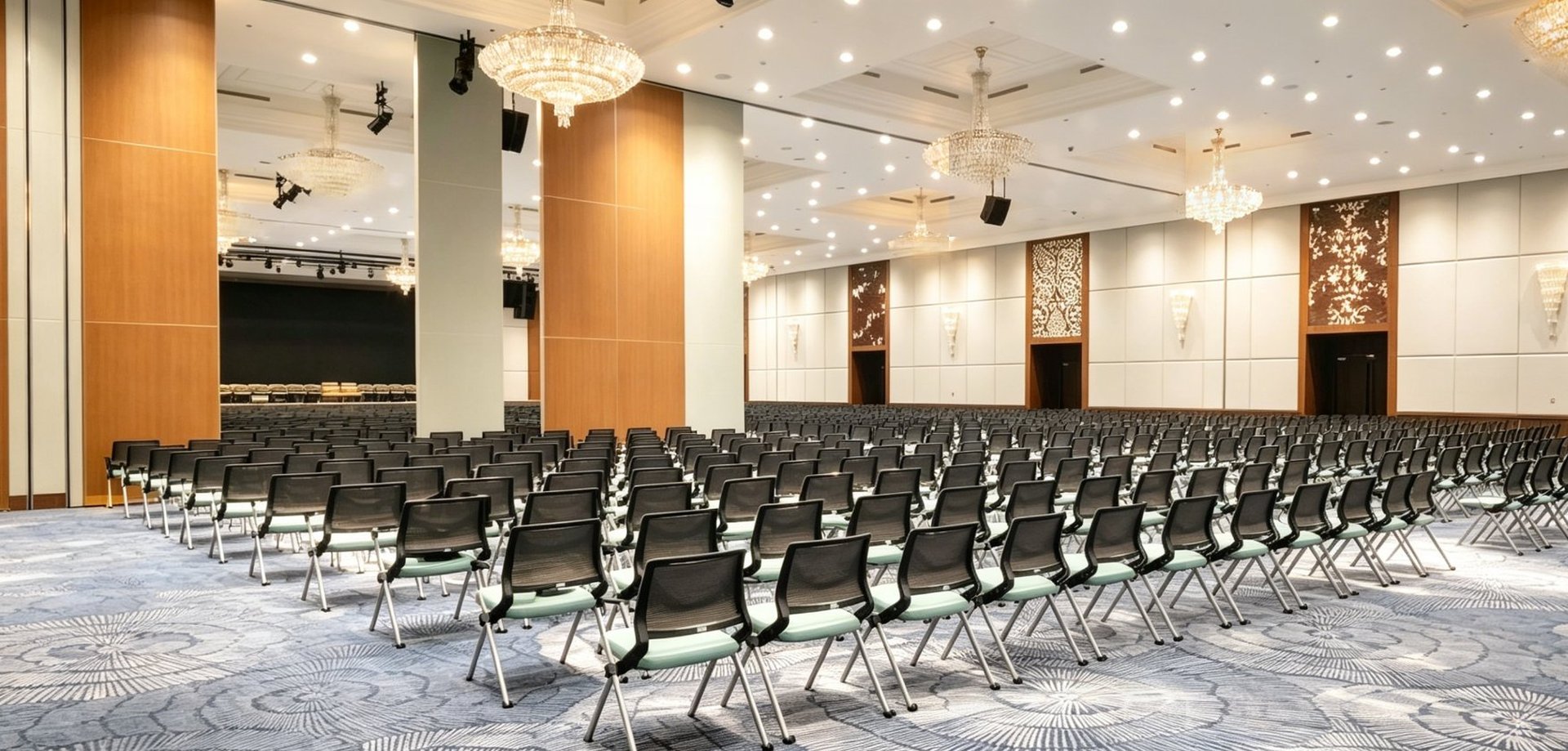

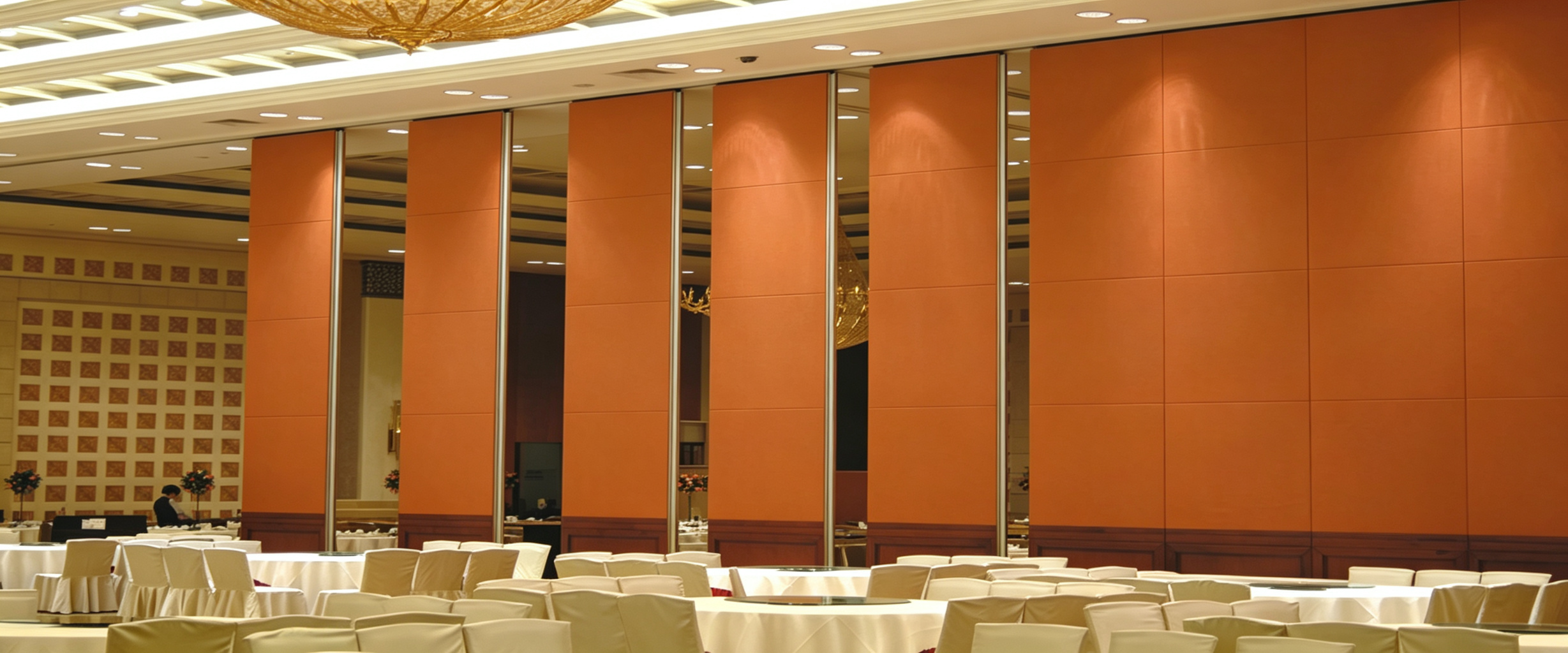

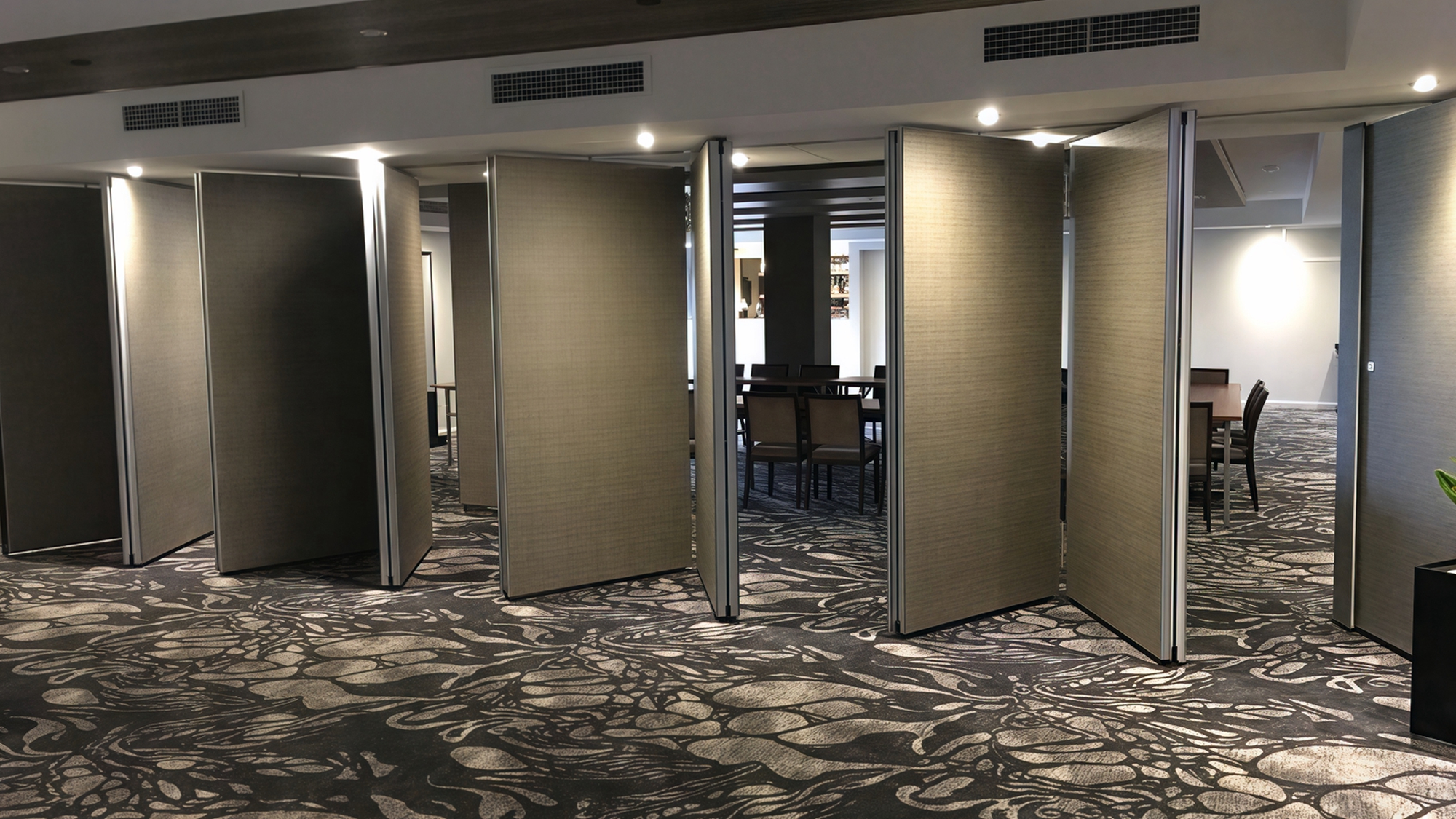

InstallationHotel Ballroom Installation
NEUWALL operable partitions dividing a grand hotel ballroom, providing flexible acoustic separation for banquets and events.
Choose Your System
Compare at a Glance
Operable Partitions — Technical Data
View full specifications →| Specification | Panel NW831 | NW840 | Motorized NW840-W | Ultra-High NW840-W |
|---|---|---|---|---|
| Panel thickness | 80 mm (3-1/8 in) | 100 mm (3-15/16 in) | 100 mm (3-15/16 in) | 100 mm (3-15/16 in) |
| Max height | 13 ft 1 in (4 000 mm) | 19 ft 8 in (6 000 mm) | 19 ft 8 in (6 000 mm) | 59 ft 0 in (18 000 mm) |
| Panel width | 1 200 mm (47 in) | 600mm-1200mm 1200mm (47in) 23in-47in | 600mm-1200mm 1200mm (47in) 23in-47in | 600mm-1200mm 1200mm (47in) 23in-47in |
| Frame construction | Aluminum | Aluminum | Steel | Steel |
| Panel weight | 7.8–8.2 psf (38–40 kg/m²) | 8.2–9.2 psf (40–45 kg/m²) | 9.8–10.7 psf (48–52 kg/m²) | 9.8–10.7 psf (48–52 kg/m²) |
| Acoustic STC | 40,43,45 dB | 45,48,50 dB | 50,53,55 dB | 50,53,55 dB |
| Seal operation | Manual | Manual | Manual / Semi-auto / Full-auto | Manual / Semi-auto / Full-auto |
Test values apply to the specimen described above, tested at a 4 000 × 2 500 mm opening. Sound insulation in the finished installation depends on the surrounding structure, the head detail and the sealing of the perimeter.
Motorized and Ultra-High are configurations of the same NW840-W platform.
Operable Glass Walls — Technical Data
View full specifications →| Specification | 80 mm NG80 | 88 mm NG88 |
|---|---|---|
| System depth | 80 mm (3-1/8 in) | 88 mm (3-7/16 in) |
| Type of glass | Double glazing | Double glazing |
| Max height | 4 000 mm (13 ft 1 in) | 4 000 mm (13 ft 1 in) |
| Max width | 900mm-1200mm 35in-47in | 900mm-1200mm 35in-47in |
| System weight | 44 kg/㎡ (9 lbs/ft²) | 48.9 kg/㎡ (10 lbs/ft²) |
Test values apply to the specimen described above, tested at a 4 000 × 2 500 mm opening. Sound insulation in the finished installation depends on the surrounding structure, the head detail and the sealing of the perimeter.

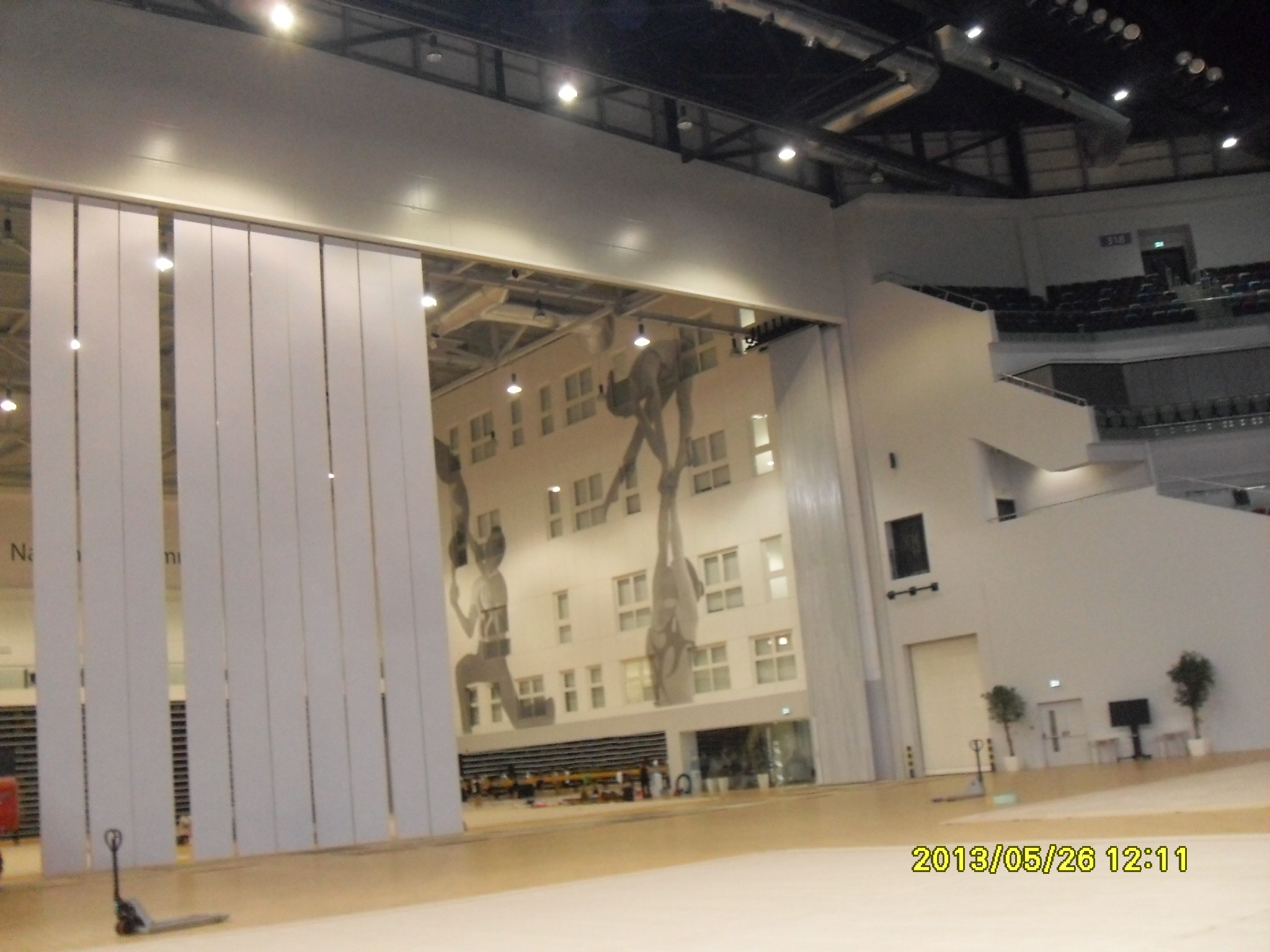

Engineered for Voids
Operable Partitions for Tall Openings — Up to 59 ft (18 000 mm)
Steel-framed single-panel partitions for atriums, convention halls and full-height voids.
- Max height18 000 mm (59 ft)
- AcousticSTC 55 dB (ASTM E90)
- Panel weight48–52 kg/m² (9.8–10.7 psf)
- ConstructionWelded steel frame
About Us
NEUWALL INDUSTRIAL CO., LTD
Manufacturer of operable partitions and movable glass walls since 2009 — production in Guangzhou, service center in Shanghai. NeuwallX® is our registered trademark.
All systems are top-hung with no floor track. Glass walls are acoustically rated Rw 44 dB per BS EN ISO 717-1: 2013. We offer 2-year panel and 5-year track warranty for all exports.
About NEUWALL FactoryApplication Scenarios
Where Our Solutions Work
01 / 04
Hotels & Resorts
Divide ballrooms without losing the room's proportions.
02 / 04

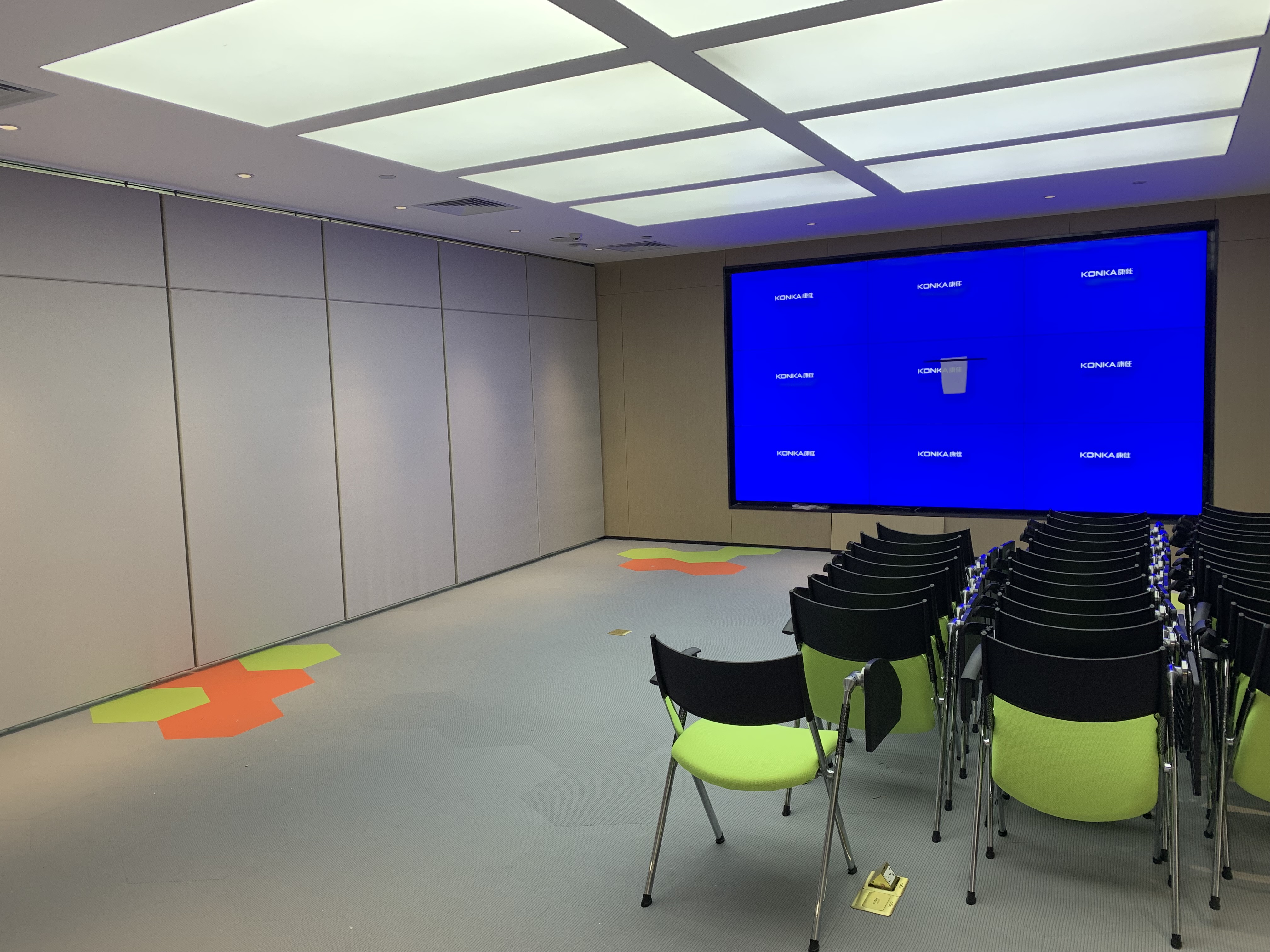

Conference Centers
One hall becomes four breakout rooms, each acoustically independent.
03 / 04

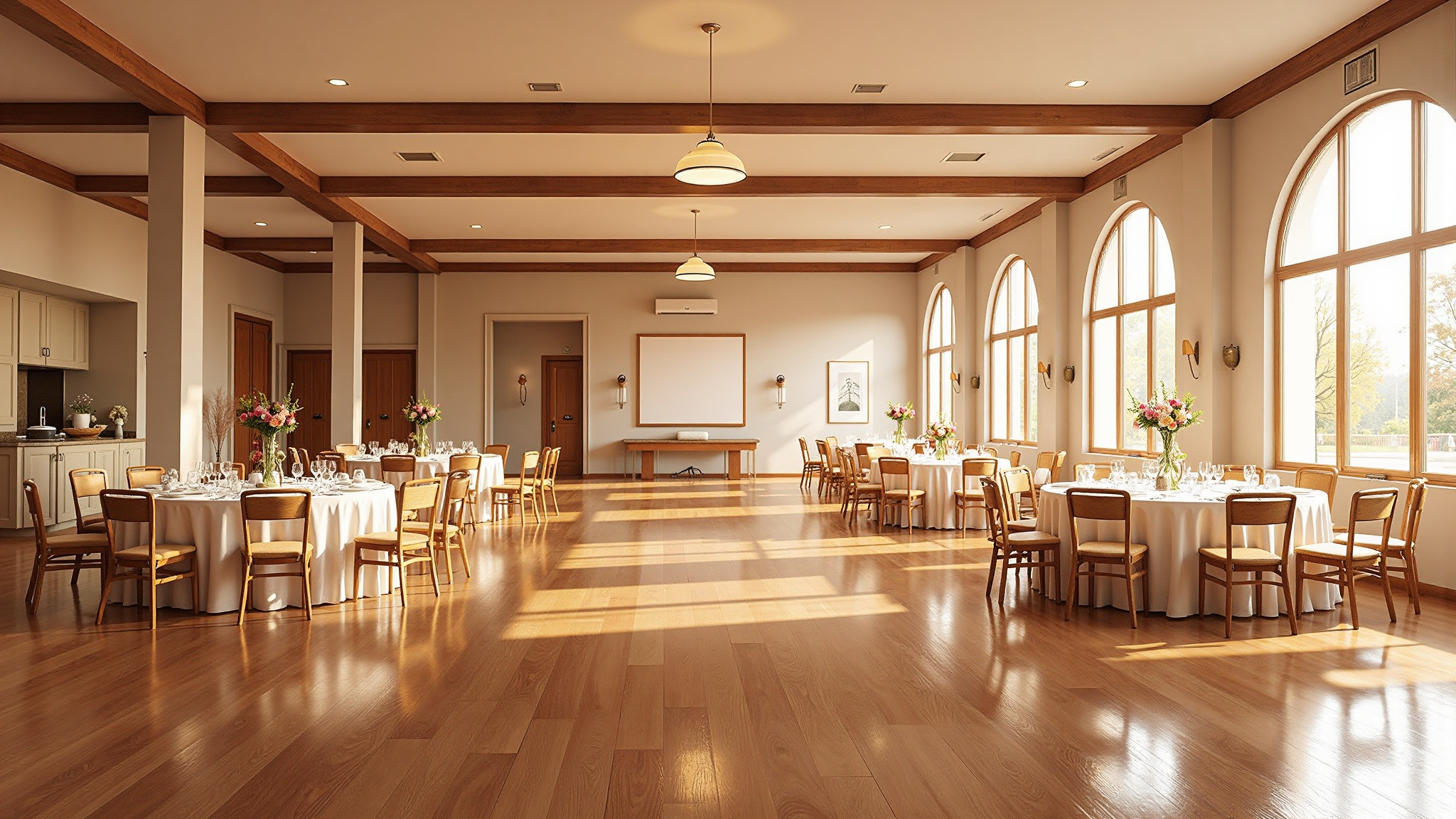

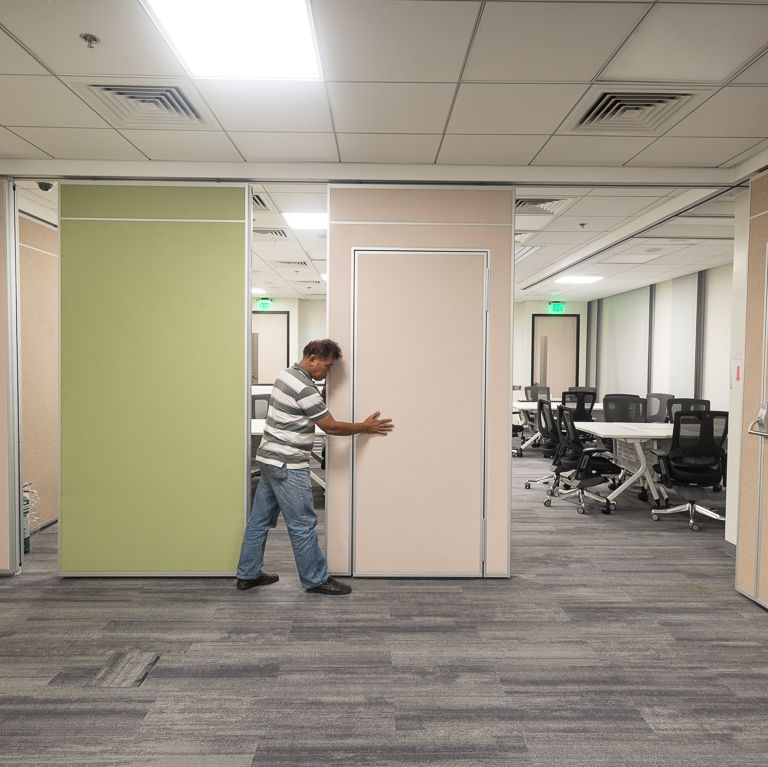

Corporate Offices
Meeting rooms that appear when needed and stack away after.
04 / 04

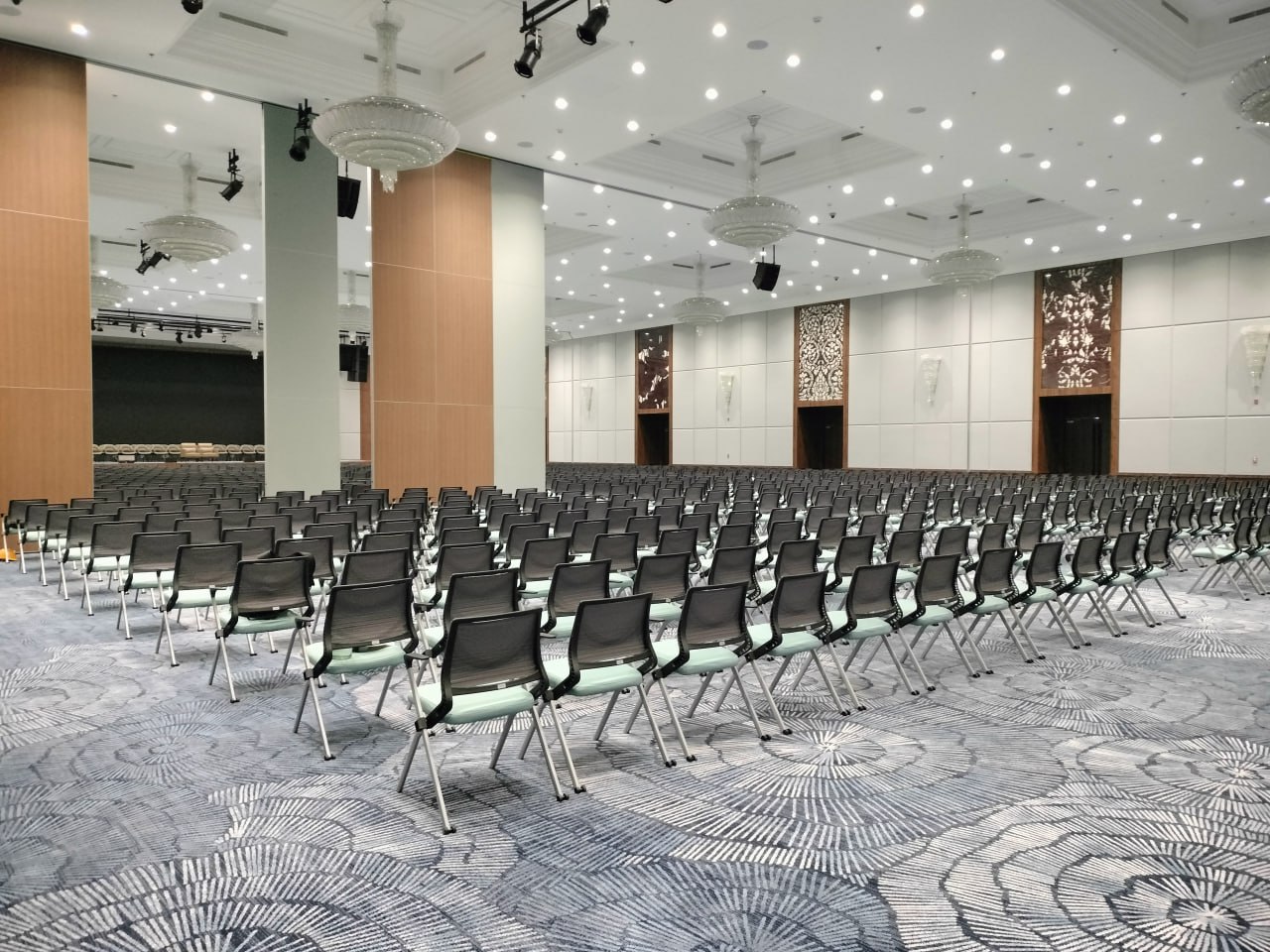

Ballrooms & Banquet Halls
Heavy-duty panels rated for daily reconfiguration.
Resources
Guides & Documentation
STC & Rw Acoustic Guide
Two standards, two test methods — and what rating your space actually needs.
ReadHow to Choose
Five decisions, in the order that actually matters.
ReadAcoustic Test Report
Rw ratings to BS EN ISO 717-1, measured to BS EN ISO 10140-2.
DownloadLatest News
Stay updated with our latest developments and industry insights
Request a Quote
Send your opening size and acoustic requirement. We reply within 12 working hours.
